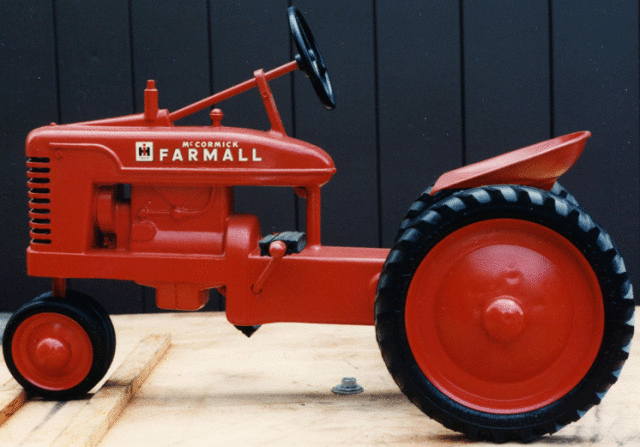

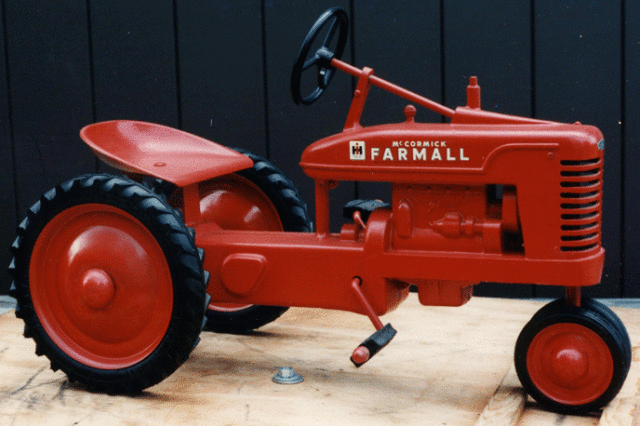

IH Small H Open Grill Pedal Tractor

IH “SMALL H” OPEN GRILL
Manufactured by Eska in the late 1940’s, early 1950’s.
1st Version has cast in radiator cap, 2nd Version doesn’t.
Both Versions have a cast in muffler that should be painted silver and a cast in air breather.
The Small “H’s” have no bushings or bearings, just the sides of the casting hold the pedal crank.

DECALS: Left and Right side, Eska decal on the back, and a Farmall decal above the grill
GRILL: Cast in open grill, 9 holes each side
FRONT TIRE: 6x1” rib tread, flat face
REAR TIRE: 12x1 3/4” lug tread Eska tires or a few early ones had rib tread Firestone tires
RIMS: Smooth Low Dome with high dome painted hubcaps.
HUBS: Unique hub held one with two rivets, only used on the Small “H”
CHAIN: Skip tooth
PEDALS: Teardrop, solid rubber, without metal ends held on with an unpainted acorn nut
STEERING WHEEL: Small 6” round 3 spoke steering wheel drilled with a set screw
SEAT BRACKET: Flush with rear of tractor
SEAT: Unique pan style, only used on the Small “H”
HITCH: A hole cast into the frame.

Check out the video with more information closeups.

http://youtu.be/BrqbkheSMQQ

copyright Real Deal Productions, Inc.
