John Deere A Open Grill Pedal Tractor

JOHN DEERE “A” OPEN GRILL
Manufactured by Eska in the early 1950’s.
This model is being reproduced.
Does not have any bearings or bushings, just the thickness of the casting supports the rear axle and pedal crank.
Has a cast in muffler.

DECALS: Left and Right side, the Front, and the back of the seat
GRILL: Cast in open grill
FRONT TIRE: 6x1” rib tread, flat face, Eska
REAR TIRE: 12x1 3/4” lug tread, Eska
RIMS: Smooth Low Dome rims with high dome painted hubcaps

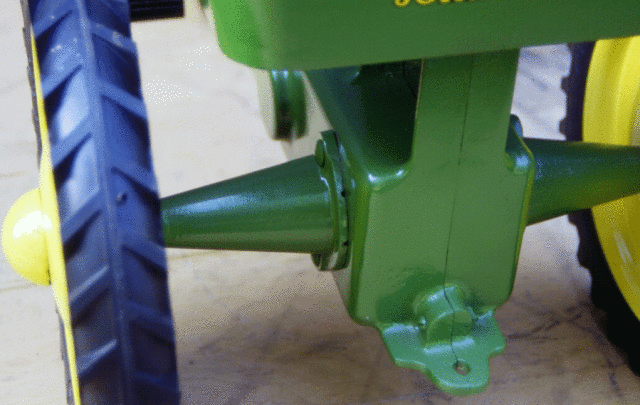

HUBS: Unique hub, only used on open grill “A”
CHAIN: Skip Tooth
REAR AXLE: 7/16”
PEDALS: Tear drop, solid rubber without metal ends held on with unpainted acorn nuts
STEERING WHEEL: Small 6” round, 3 spoke steering wheel drilled with a set screw
SEAT: Unique to the Open Grill “A”

Check out the video with more information closeups.copyright Real Deal Productions, Inc.



http://youtu.be/IvCKSwNOZ8E
